New EDC Cracking Unit: 49-0114-0070, Reactor Cooling Pumps

Description: SUPPLY SINGLE STAGE, RADIALLY SPLIT PROCESS PUMP ACC. TO API 610 11TH - TYPE OH2 – C/W 75 KW

Qty: 2

Designation: Flow rate (238 m3 /hr ) and head (9 bar ) with motor ABB of rated power 75kw-400V;

Medium: Condensate hot water

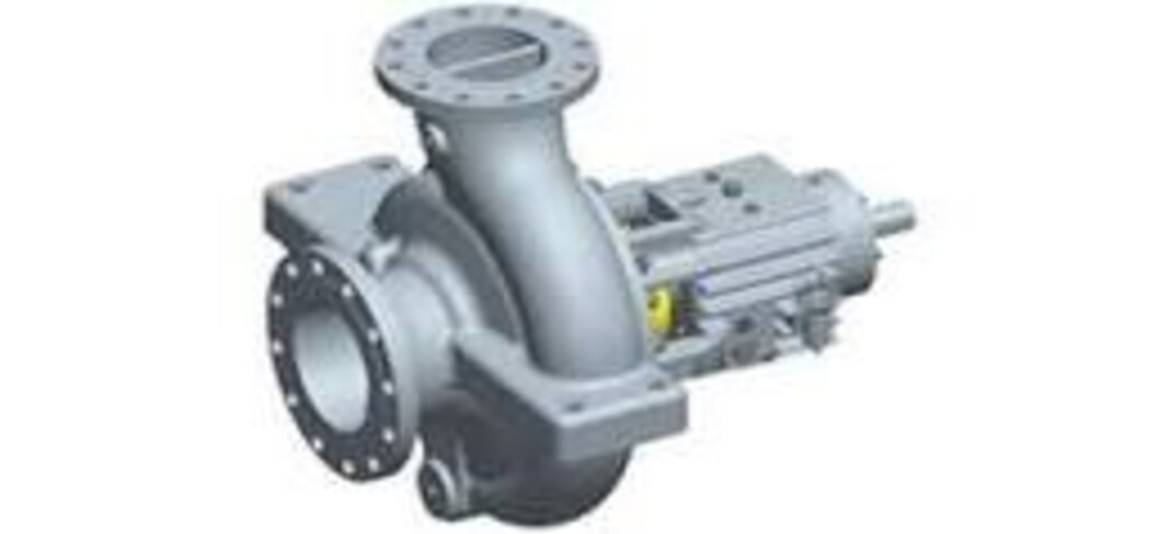

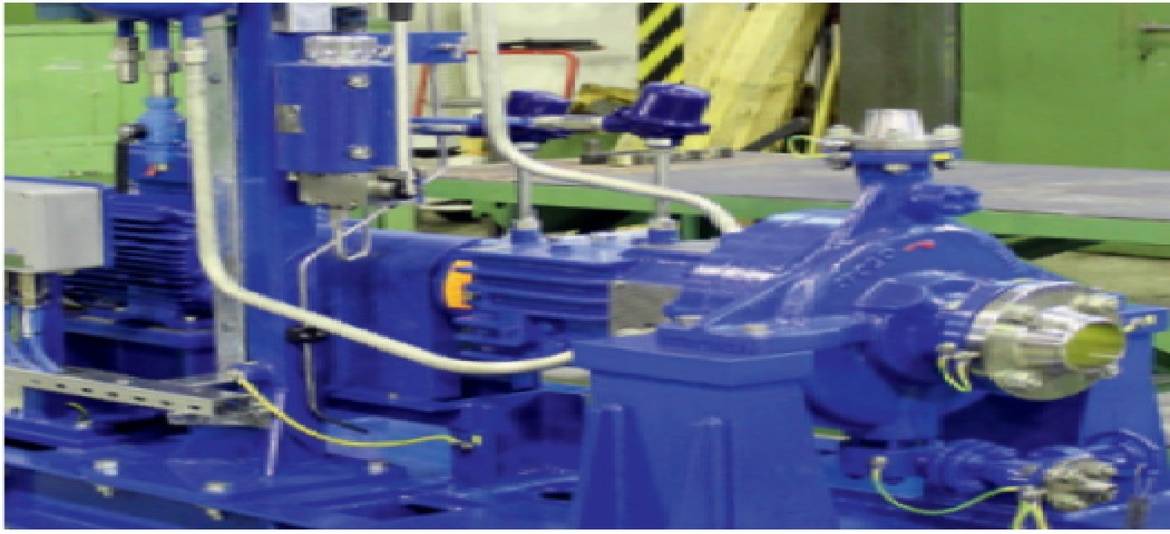

Pump unit KRH-150/280 (single stage, radially split process pump acc. to API 610 11th - type OH2) - with motor 75 kW Motor witnessed Type test (Including noise test) for each motor Motor witnessed Routine test for each motor - with seal plan 23/61 EagleBurgmann - with sun shade - with piping orifice (Warm-up) - with cable gland M63x1,5 for main terminal box (one ATEX cable gland and one ATEX stopping plug) - with cable gland M25 for auxiliary terminal box (one ATEX cable gland and one ATEX stopping plug
